GD08 - Hardware keyboard

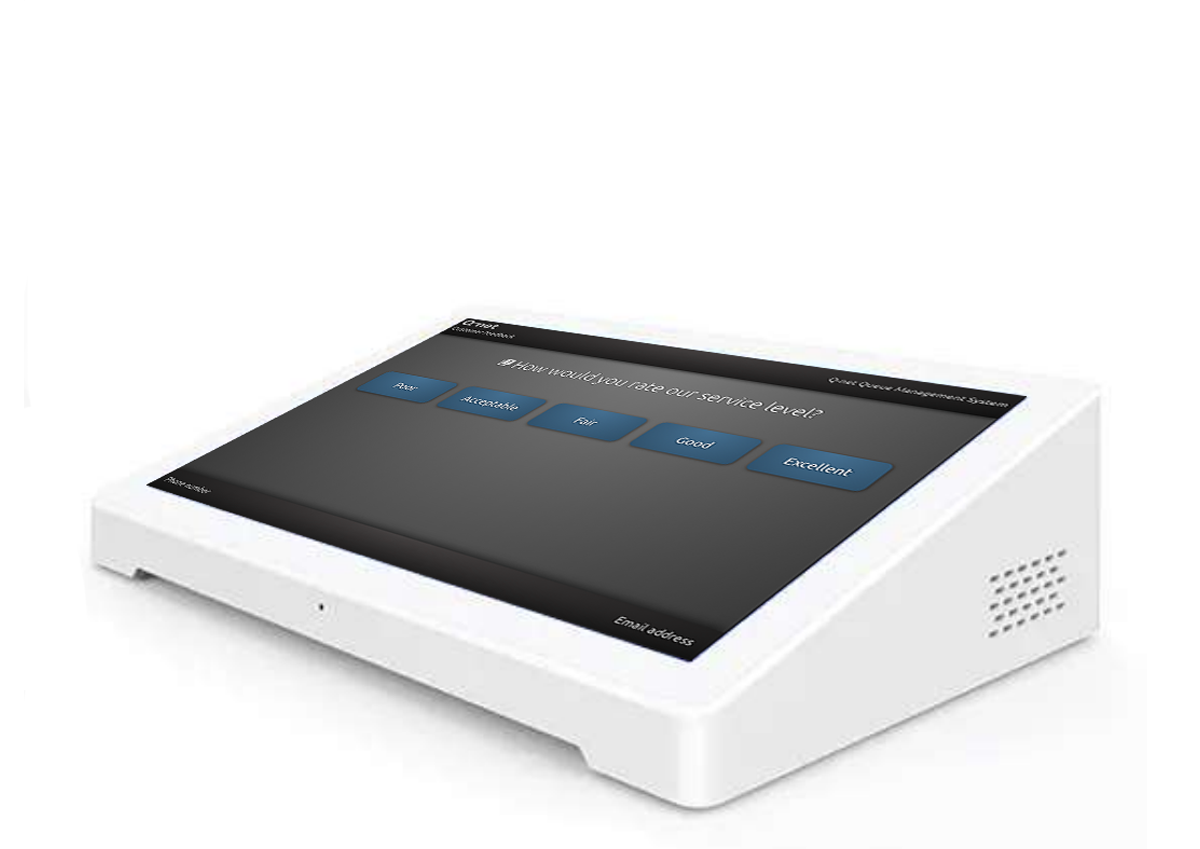

Q-net Multifunctional Device with 8' LCD & Touch Panel, on desktop for Pro

Overview
The Q-net Pro queue management software can be extended with several extra features and optional software modules. Some of them requires a hardware element. For this, we have created GD08 Multifunctional Device with 8' LCD & Touch Panel, on desktop.
The GD08 can be used for the following purposes currently:
Customer feedback unit (to be used together with optional software module SH47, please check its datasheet)
Software keyboard (to be used with optional software module SH48, please check its datasheet)
Voice recording unit extended with a USB mini microphone (PCMU1 - to be used with optional software module SH38, please check its datasheet)
GD08 can be used in combination of the above purposes; therefore it can be used as a customer feedback unit and voice recording unit at the same time.
Built-in WiFi, less signal interference, strong stability supports easy switching between multiple windows and multiple tasks, continuing the operating habits and experience of many personal PCs.
- 10-Point Capacitive Touch
- Resolution: 800*1280
- Brightness: 300cd/m2
- Panel: 8” LCD IPS panel
- Non-slip silicone pad attached to the bottom for stable touch operation
Key Features
Specifications
- Dimensions: Height: 55 mm | Width: 196 mm | Depth: 129 mm
- Power Requirement: 12V DC, 1,5 A
