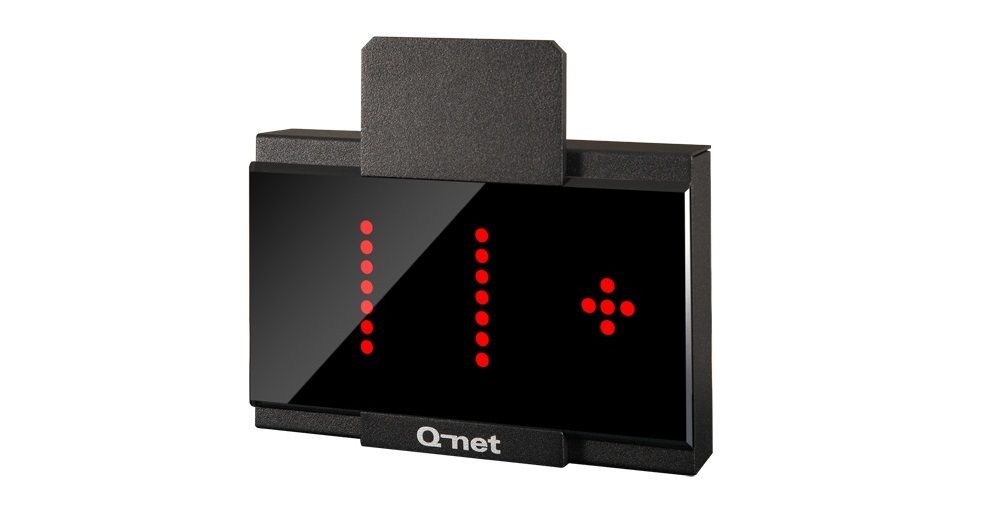

DG02

dg02_light21

To help the customer’s orientation the counter displays can be mounted above or beside the counters, optionally stainless steel tube (OB01-C04G04 = 100 cm long or OB01-C04G00 = 50 cm long) can be used to fix it onto the table or on the ceiling.

The display consists of three digits (50 mm, 5 x 7 dot matrix);  the color of the display is bright red.

At calling, the ticket number is blinking e.g.: for 30 seconds (blinking time can be adjusted in the Q-net software) on the display.


  • The number is shown on the display as long as the CLOSE button on the calling unit has been pushed.
  • The DG56 display can swap between showing Arabic and English numbers, the swapping time can be adjusted in the Q-net software.
  • The DG02 display is available for Q-net Basic, Basic Plus and Pro systems.
  • The DGXX displays are fitting to ticket dispensers in the same design style. (TC10, TC16, TG02, TG03, TG10, TG13, TG14)

Dimensions:

  • Height: 160 mm
  • Width: 174 mm
  • Depth: 50 mm

Power requirements: 12V DC, max 0.6A

* = only English numbers
